Print current pageProduct Description
- brief introduction
- technical parameter

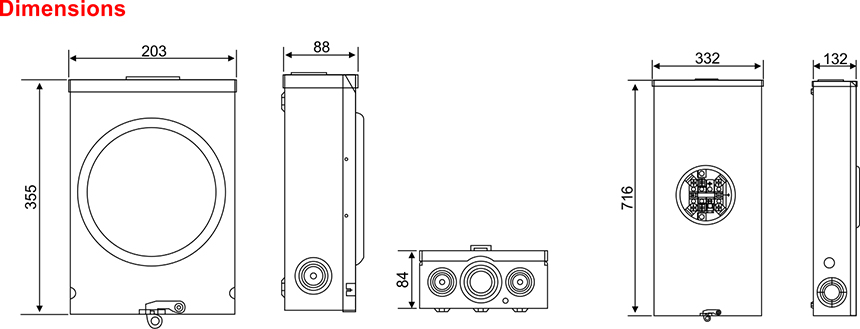

- Product size
MT-20 Series Meter Socket
1.20 AMP.
2.CURRENT TRANSFORMER RATED.
3.By pass: Plunger type bypass automaticallycloses when meter is removed.
4.NEMA 3R type construction 1.2mm thickness(#18 gauge) or 1.5mm thickness(#16 gauge)galvanized steel sheet(AISI G90), electros-tatically applied epoxy baked gray powder finished.
5.Ample gutter space for easy wiring.
6.Convenient knockouts in the side back andbottom.
7.The fixed hub size 1/ 2" to 2-1/ 2" for option.
MT-320 Series Meter Socket
1.320Amps, 600VAC, 4Terminals, single phase, 3 wire, ringless type.
2.NEMA 3R type construction 1.5mm thickness(#16 gauge) galvanized steel sheet (AISI G90),electrostatically applied epoxy baked gray powder finished.
3.Heavy duty lever bypass.
4.Heavy duty tin plated copper jaw.
5.OVERHEAD / UNDERGROUND.
6.Convenient knockouts in the side back and bottom.
7.The fixed hub size 2" to 2-1/2" for option.
Specification
